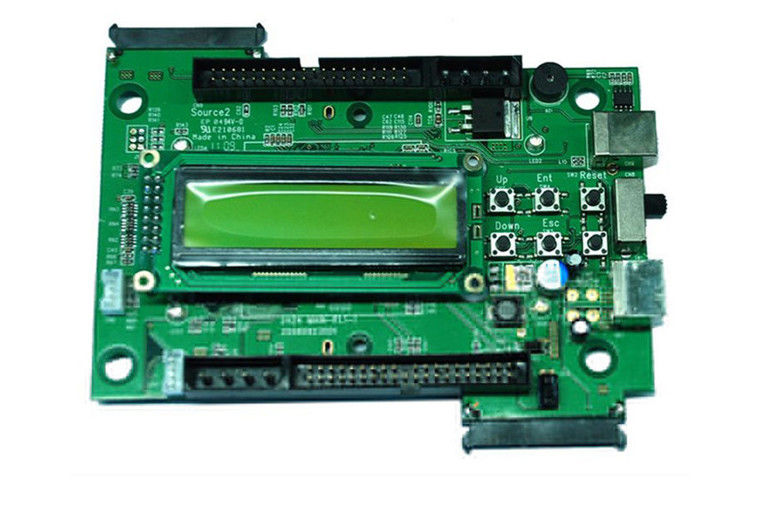

Green Solder Mask PCB Prototype Fabrication Service Featuring PTFE Materials Ideal for Precision Electronic Applications

Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC assembly,Cable assembly,Mix technology assembly and Box buildings.

Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;

BLSuntek Electronics Co., Ltd,as the new facility,located in Kandal Prov,Cambodia.

With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified,

We deliver qualified products with competitive price to clients all over the world.

Product Description:

Our PCB Manufacturing product is widely used in a variety of electronic devices and communication systems. From consumer gadgets to industrial communication infrastructure, the reliable performance and customizable features of our PCBs make them an essential component in the electronics industry. The combination of advanced manufacturing techniques, diverse layer options, and flexible board designs ensures that every product meets stringent quality standards and industry certifications.

In summary, our PCB Manufacturing service stands out for its versatility, precision, and integration capabilities. With thickness options from 0.8mm to 2.0mm, layers from 1 to 48, and minimum prepreg thickness of 0.06mm, we cater to a broad spectrum of electronic applications. Our expertise in Flexible Circuit Board Manufacturing and PCB Assembly Manufacturing provides customers with reliable, high-performance circuit boards ready for immediate deployment. Coupled with customer-specified logistics, we deliver a tailored manufacturing experience that aligns perfectly with your project goals and timelines.

Features:

• Product Name: PCB Manufacturing
• Solder Mask: Green
• PCB Outline Options: Square, Circle, Irregular (with Jigs)
• Thickness Range: 0.8mm to 2.0mm
• Standard Thickness: 2.0mm
• Minimum PP Thickness: 0.06mm
• Expertise in Flexible Circuit Board Manufacturing
• High-quality Printed Circuit Board Fabrication
• Reliable Rigid Circuit Board Manufacturing

Technical Parameters:

Applications:

Printed Circuit Board Fabrication plays a crucial role in the development and production of modern electronic devices. Our PCB manufacturing product, featuring a distinctive green solder mask, is designed to meet the diverse needs of various application occasions and scenarios. The green solder mask not only provides excellent protection against oxidation and environmental damage but also enhances the visual inspection process during assembly, making it ideal for high-quality electronic circuit board production.

One of the standout features of our product is its special capabilities, including gold finger plating, peelable solder mask options, and carbon ink integration. Gold finger plating is essential for applications requiring reliable edge connectors, commonly found in high-speed communication devices, computer motherboards, and expansion cards. The peelable solder mask allows for easy rework and testing, making it perfect for prototype development and small batch productions where flexibility and precision are paramount. Carbon ink integration offers excellent conductivity and durability, making it suitable for touch panels, flexible circuits, and other specialized electronic applications.

Our PCB manufacturing product supports a minimum prepreg thickness of 0.06mm, allowing for ultra-thin and compact designs that are critical in portable and wearable electronics. The tight tolerance of ±0.1mm ensures high precision and consistency, which is essential for complex multi-layer boards and high-density interconnects. With a base copper weight ranging from 1/4OZ to 2OZ, our PCBs can accommodate various current carrying capacities and thermal management requirements, making them versatile for use in automotive electronics, industrial machinery, consumer electronics, and telecommunications equipment.

Our custom PCB manufacturing service is tailored to meet the specific demands of clients, whether they require single prototypes or mass production runs. The flexibility in design parameters, combined with advanced fabrication techniques, ensures that each printed circuit board produced meets stringent quality standards and performance criteria. This makes our PCB product highly suitable for startups developing innovative gadgets, established manufacturers seeking reliable electronic circuit board production, and research institutions working on cutting-edge technology prototypes.

In summary, our PCB manufacturing product with green solder mask, specialized plating and ink options, precise thickness and tolerance control, and customizable copper weight is ideal for a wide range of electronic applications. From consumer electronics and automotive systems to industrial controls and telecommunications, our printed circuit board fabrication solutions provide the reliability, precision, and customization necessary to bring your electronic designs to life.

Customization:

Our PCB Manufacturing product offers extensive customization services to meet your specific requirements. We specialize in Multilayer Printed Circuit Board fabrication, supporting from 1 to 48 layers to accommodate complex designs and high-density circuits. The standard thickness of our PCBs is 2.0mm, ensuring robust mechanical strength and durability for various applications.

We provide a range of base copper weights from 1/4OZ to 2OZ, allowing you to select the optimal copper thickness for your electrical performance needs. Our manufacturing process maintains a tight tolerance of ±0.1mm to ensure precision and reliability throughout the Printed Circuit Board Fabrication process.

To protect the circuitry and enhance solderability, our PCBs feature a green solder mask as standard, delivering excellent insulation and aesthetic appeal. Additionally, our full-service PCB Assembly Manufacturing capabilities allow you to receive fully assembled and tested boards, streamlining your production workflow.

Choose our PCB Manufacturing customization services for high-quality, reliable, and precisely fabricated Multilayer Printed Circuit Boards tailored to your project specifications.

Support and Services:

Our PCB Manufacturing product comes with comprehensive technical support and services to ensure seamless production and high-quality results. Our expert team is available to assist you with design guidelines, material selection, fabrication processes, and troubleshooting. We provide detailed documentation, including design rules, fabrication notes, and testing procedures to help you achieve optimal performance.

In addition to technical assistance, we offer services such as prototype manufacturing, quick-turn production, and custom solutions tailored to your specific requirements. Our quality control measures include rigorous inspection and testing to guarantee reliability and compliance with industry standards.

Whether you need support during the initial design phase or assistance with large-scale manufacturing, our dedicated support team is committed to providing timely and effective solutions to meet your business needs.

Packing and Shipping:

Our PCBs are carefully packaged to ensure maximum protection during transit. Each board is placed in an anti-static bag to prevent electrostatic discharge damage. The PCBs are then secured in a sturdy, cushioned box designed to absorb shocks and prevent movement inside the package.

For added safety, multiple layers of protective materials such as foam or bubble wrap are used depending on the quantity and size of the order. All packages are clearly labeled with handling instructions to ensure careful delivery.

We offer a variety of shipping options including standard, expedited, and express services to meet your deadlines. Tracking information is provided for all shipments so you can monitor the delivery status in real time.

Our logistics partners are reliable and experienced in handling electronic components, ensuring your PCBs arrive on time and in perfect condition, anywhere in the world.

FAQ:

Q1: What types of PCB materials do you offer?

A1: We offer a variety of PCB materials including FR4, CEM-1, Rogers, Aluminum, and flexible substrates to meet different application requirements.

Q2: What is the typical turnaround time for PCB manufacturing?

A2: Our standard turnaround time ranges from 5 to 10 business days, depending on the complexity and quantity of the order. Expedited services are also available upon request.

Q3: What are the maximum PCB size and layer count you can manufacture?

A3: We can manufacture PCBs up to 600mm x 600mm in size and support multilayer boards up to 32 layers to accommodate complex circuit designs.

Q4: Can you provide PCB assembly services along with manufacturing?

A4: Yes, we offer complete PCB assembly services including SMT, through-hole, and mixed technology assembly to deliver fully assembled and tested boards.

Q5: What file formats do you accept for PCB manufacturing?

A5: We accept industry-standard file formats such as Gerber (RS-274X), Excellon drill files, and BOM (Bill of Materials) files to ensure accurate production of your PCB.
